lDimensions

lWiring diagrams

PH7-425-75U
1*Lamp Type: GPH1148T5 GPH1554T5 GPH1630T5 TUV64T5 G64T5

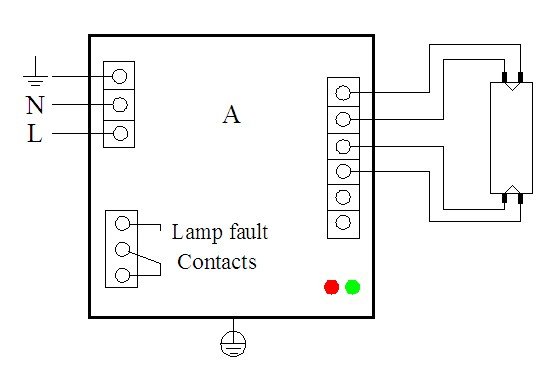

Wiring Diag：A
2*Lamp Type: GPH793T5 GPH843T5 TUV36T5 G36T5
Wiring Diag：B

PH7-800-95U
1*Lamp Type:GPH846T5HO GPH893T5HO GHO36T5L TUV36T5HO TUV55WHO TUV75WHO
Wiring Diag：A
2*Lamp Type: GPH436T5HO TUVPL-L35WHO
Wiring Diag：B

PH7-1200-105U
1*Lamp Type: GPHA843T5
Wiring Diag：A
2*Lamp Type: GPHA357T5
Wiring Diag：B

PH7-1500-80U
1*Lamp Type:NNI80/36U NIQ75/34 UVL80W/T5

PH7-1800-57U
Lamp Type:GPHA357T6

Technical specifications
Mains Voltage：110-240VAC±10%
Mains Frequency:50/60Hz
Power Factor: >0.98
Efficiency: >90%
Operating Frequency: 40-60KHz
Dimensions: 185*56*38 mm

Lamp status indication via LED indication
Green LED：Lamp on
Red LED：Lamp fault

Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault..

Installation requirement
Wire Gauge：0.5-1.5mm²
Max.cable length between ballasts and lamp：5m
Relay contacts：potential free，load：50…500mA at 24…230V AC；
50…500mA at 5…60V DC

Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.

Features
Starting：Preheat
Add buzzer function
Buzzer function：The buzzer will sound when the lamp fault..
UV lamp can be connected to external LED.

Two isolated 5V output，C drawing：
This product is in stock, order cycle is 20 days, when ordering, please note this function .

Applications
Air purification
Industrial water treatment
Kitchen purification
